Rigs

Our Rigs

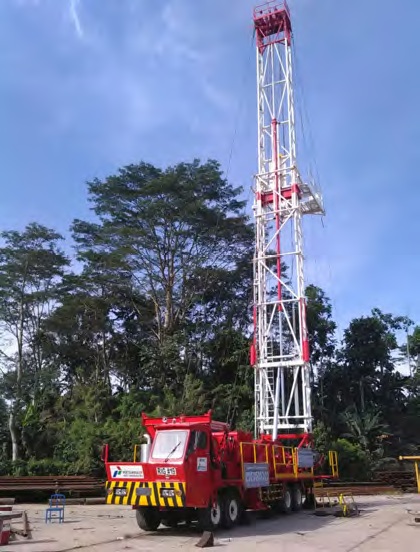

PD 150 – 250

(MOBILE RIGS)

Specification

• Maximum Static Hookload : 100,000-150,000 lbs (6 Lines)
• Clear Height Mast : 50-72 Feet
• Height Tubing Board to Ground : Adjustable
• Drawwork : Single or Double Drums, 7/8” Main Line, and 9/16” Sand line
• Carrier : 3-4 Axles
• Diesel Engine, CAT C7-C9, Rated Horse Power 225-300 BHP @ 2200 RPM, Water Cooling System

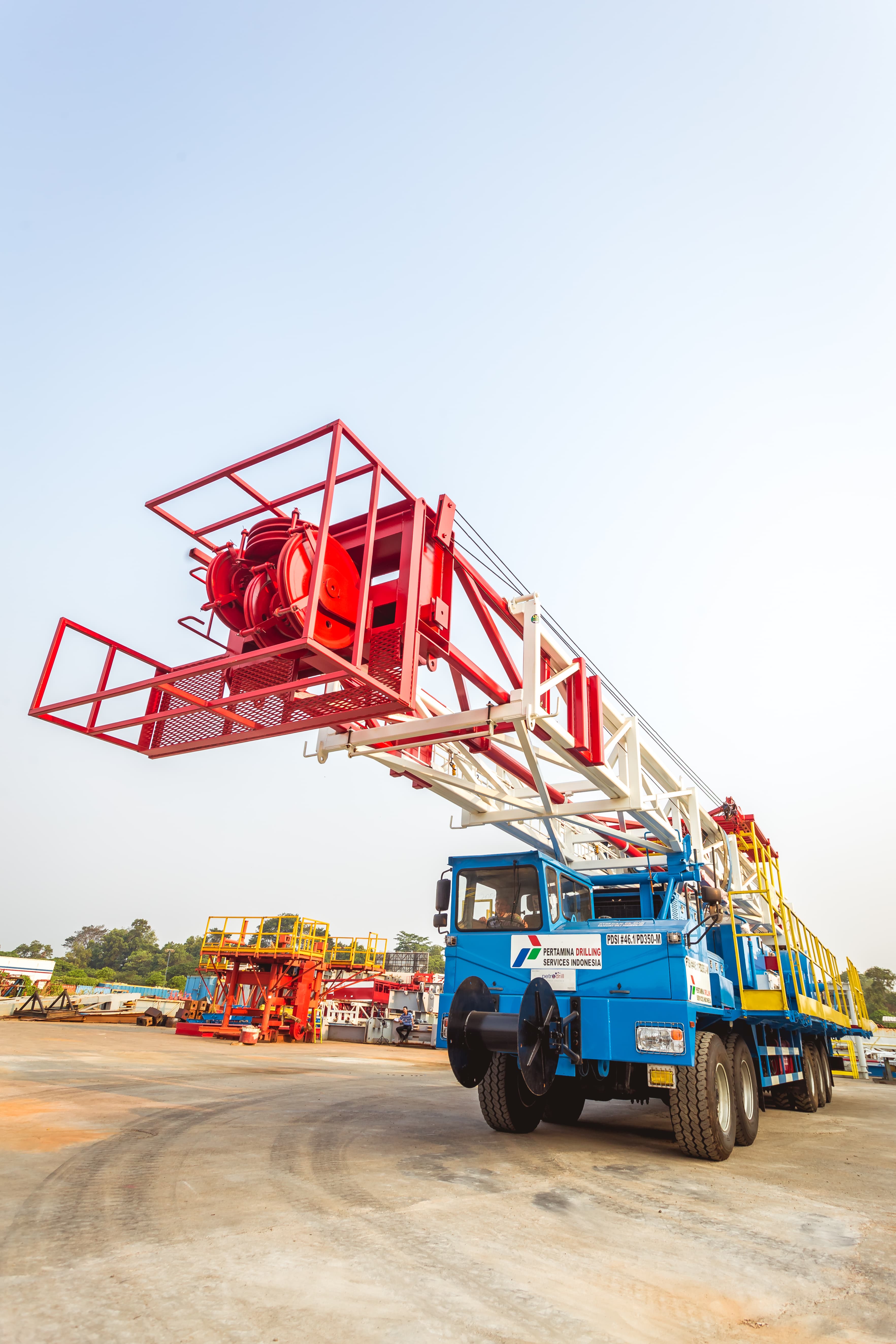

PD 350

(MOBILE RIGS)

Specification

• Maximum Static Hookload : 220,000 lbs (6 Lines)
• Clear Height Mast : 96 Feet
• Height Tubing Board to Ground : Adjustable
• Drawworks : Double Drums (42” x 12” Main Drum, 38” x 8” Sand Line), 1” Main Line, and 9/16” Sand Line
• Carrier : 4 Axles – (8×4)
• Diesel Engine, CAT C-13, Rated Horse Power 420 BHP @ 2100 RPM, Water Cooling System

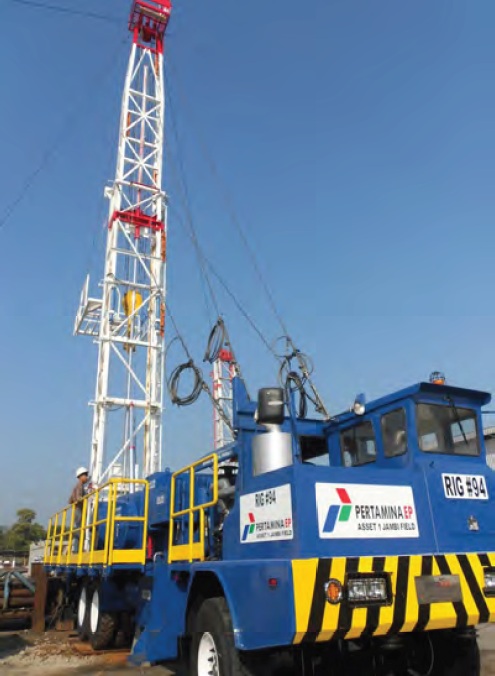

PD 450 – 550

(MOBILE RIGS)

Specification

• Maximum Static Hookload : 300,000 lbs (8 Lines)
• Clear Height Mast : 112- 115 Feet
• Height Tubing Board to Ground : Adjustable
• Drawworks : Double Drums, 1-1/8″ Main Line, and 9/16” Sand Line
• Carrier : 5 Axles (10×4)
• Diesel Engine, CAT C-15, Rated Horse Power 580 BHP @ 2100 RPM, Water Cooling System

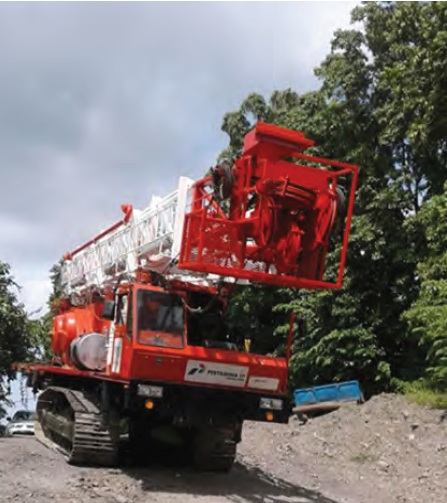

PD 150 – 550

(CRAWLER RIGS)

Specification

• Maximum Static Hookload : 300,000 lbs (8 Lines)
• Clear Height Mast : 50- 115 Feet
• Height Tubing Board to Ground : Adjustable
• Drawworks : Double Drums, 1-1/8″ Main Line, and 9/16” Sand Line
• Carrier : 5 Axles (10×4)
• Diesel Engine, CAT C-15, Rated Horse Power 580 BHP @ 2100 RPM, Water Cooling System

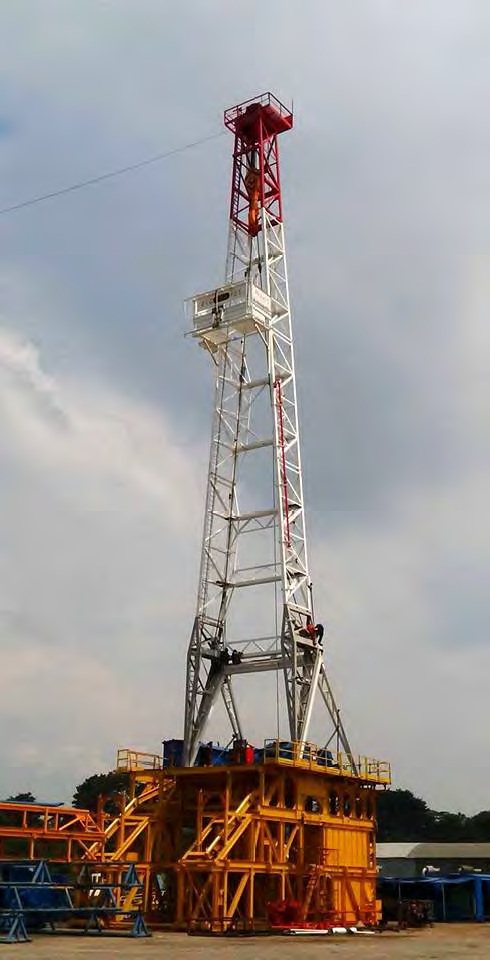

PD 1000

(LAND RIGS)

Specification

• Maximum Static Hookload : 750,000 lbs
• Clear Height Mast : 136 Feet
• Drawworks : 1,000 HP, 1-3/8” Drilling Line
• Substructure : Hydraulical Elevated
• Setback Capacity : 450,000 lbs
• Engine : 2 (two) Diesel Engine, CAT C-15, Rated Horse Power 580 BHP @2100 RPM, Water Cooling System

PD 1500

(LAND RIGS)

Specification

• Maximum Static Hookload : 1,000,000 lbs
• Clear Height Mast : 142 ft
• Drawworks : 1,500 HP, 1 3/8” Drilling Line
• Substructure : Hydraulic Raised or Cantilever Raised Type
• Setback Capacity : 450,000 lbs
• Engine : 3 (three) Diesel Engine, CAT C-18, Rated Horse Power 580 BHP @2100 RPM, Water Cooling System
